3-Panel Sliding (3-Lite Roller) Windows

3-Panel Sliding (3-Lite Roller) Windows in Miami, FL | TruePane Windows & Doors

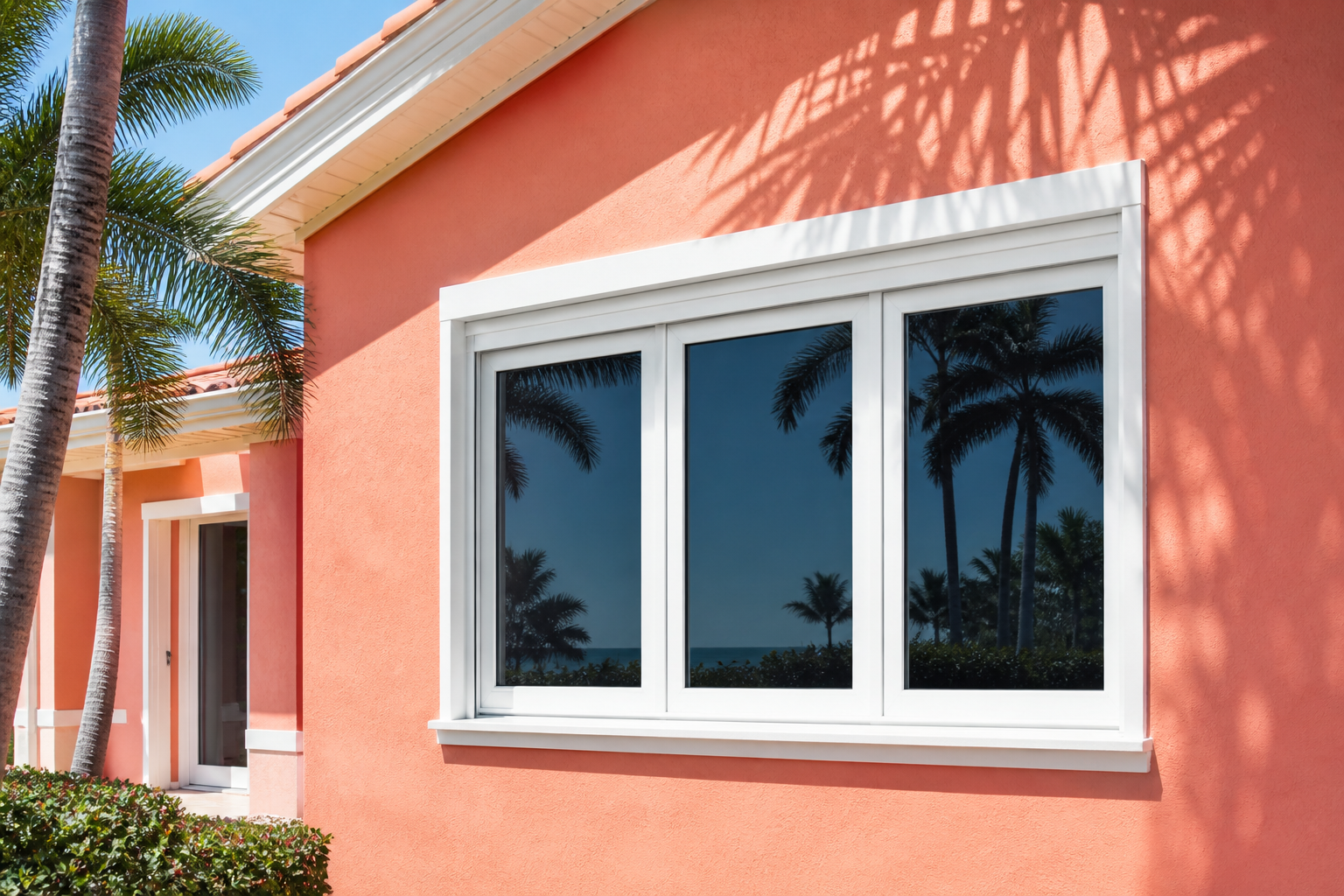

Wide openings call for a window that moves as easily as it protects. The 3-Panel Sliding (3-Lite Roller) Window is a horizontal three-panel setup built around laminated impact glass, configured so two panels glide while one stays fixed, or one glides while two stay fixed. For Miami homeowners replacing a dated sliding door or floor-to-ceiling banquette window, this profile delivers the clean sightlines you want with the HVHZ impact rating your building department requires. TruePane Windows & Doors supplies and installs these systems across Miami-Dade, with framing and glazing matched to your wind zone and your home’s architecture. Call (561) 489-4036 to talk through sizing and get a free project estimate.

Call (561) 489-4036

Product Overview - 3-Panel Sliding (3-Lite Roller) Windows

A three-panel horizontal roller configuration for wider openings, with laminated impact glass across all three lites and smooth multi-panel gliding. That is the product in one sentence. But what makes it work in a Miami home is the engineering behind the frame and the glass working as one system, not a collection of parts.

These windows are sized for openings that a single or double slider cannot handle gracefully. Think a 9-foot or 12-foot run in a great room facing the backyard, a wide master-bedroom opening with a water view, or a sunroom wall that wants glass, not posts. Because the load is spread across three lites, the panels stay manageable, the track stays smooth, and the frame resists racking under wind load far better than a narrower unit asked to carry the same exposure.

We spec these in aluminum or vinyl. Aluminum suits the modern coastal and mid-century forms common in neighborhoods like Coconut Grove and Miami Shores, where thin frames and tall glass reads as architecture. Vinyl suits homeowners who want thermal performance and a softer maintenance profile, though both materials carry laminated impact glass with a PVB interlayer that holds the pane in the frame even when the glass shatters under impact. That matters. A broken window that stays in its frame keeps wind and water out of your house, and that is the entire point of an HVHZ-rated product.

What we hear from Miami clients after installation is usually about the glide. A properly set three-lite roller moves with two fingers, not a shoulder. That smoothness comes from the track alignment and the installation as much as the hardware, which is why we level, plumb, and square every unit before it is fastened. More on that below.

Technical Specifications

Frame materials: Aluminum or vinyl, selected by exposure, budget, and architectural style.

Track configurations: 3-Lite with 2 fixed panels and 1 operable panel, or 3-Lite with 1 fixed panel and 2 operable panels.

Glass options: Laminated impact glass with PVB interlayer, Low-E insulated glass, tinted glass, or clear glass. Low-E and insulated options stack with laminated impact glass for energy performance.

Color and finish options: White, Almond, Bronze, Black, and Tan. Bronze and Black read sharp against stucco and concrete; White and Almond blend with traditional Florida ranch and Mediterranean forms.

Screen options: Retractable screen or sliding screen, depending on how often you open the operable panel and whether you want the screen hidden when closed.

Design pressure: Matched to your wind zone, up to +/-100 PSF, never higher. We do not oversell a pressure rating your house does not need, and we will not under-spec one it does.

Compliance documentation: Miami-Dade NOA and Florida Product Approval numbers issued per configuration, which we provide with your quote for permit submittal.

Hurricane & Compliance Performance

Laminated Impact Glass – The glass in these units is not tempered and hoping for the best. It is laminated with a PVB interlayer that holds the fragments in place when impact breaks the pane. The window deforms, the glass cracks, but the barrier stays closed. That is the mechanism that keeps your interior dry and your pressure envelope intact during a storm.

Miami-Dade NOA / Florida Product Approval – Each configuration carries a Notice of Acceptance or Florida Product Approval number specific to the frame, glass make-up, and size. The number on the drawing is the number on your permit. We pull the correct submittal documents for your exact unit and include them with your quote so there is no back-and-forth at the building department.

FBC / HVHZ Compliance – These windows are engineered to Florida Building Code High-Velocity Hurricane Zone requirements, which is the stricter of the two Florida code regimes and the one that governs Miami-Dade and Broward. An HVHZ product is tested and documented differently than a product built for the rest of the state, and your permit reviewer will know the difference.

TAS 201 / 202 / 203 Testing Context – HVHZ-rated products are validated under the TAS protocol family. TAS 201 is the large-missile impact test, TAS 202 subjects the unit to cyclic wind-pressure loading that simulates a storm’s repeated gusts, and TAS 203 measures forced-entry resistance. A unit that carries a Miami-Dade NOA has passed this battery in a certified lab, not on a marketing slide.

Design Pressure Matched to Your Wind Zone – Design pressure is a PSF number, not a wind speed. For these units we match the DP to your actual wind zone, up to +/-100, and never higher. Overselling a pressure rating does not make the window stronger; it makes the quote dishonest. We tell you what your exposure requires and spec to that.

Low-E / Insulated Glass Options – Laminated impact glass handles the storm. Adding a Low-E coating or an insulated make-up handles the sun. For west-facing Miami walls that catch afternoon heat, an insulated laminated unit cuts solar gain meaningfully without changing the frame profile.

Color & Glass Options

Miami architecture runs from 1920s Mediterranean to 1970s concrete modern to new-construction glass boxes, and the finish choice should follow the house, not the other way around. White and Almond sit quietly on older Florida homes and painted stucco. Bronze and Black give a contemporary edge to gray block, white stucco, or wood-trimmed modern builds. Tan bridges the two, working well on Mediterranean homes with barrel tile and on warmer-toned stucco. All five finishes are factory-applied, not site-painted, so the color lives in the material rather than on it.

On the glass side, the base impact package is laminated clear glass. From there, tinted laminated glass helps on full-sun exposures where glare is the daily complaint, while Low-E insulated glass is the pick when you are replacing a wide run that catches afternoon heat and your air conditioner already works hard enough. For a living room wall facing the water, clear laminated keeps the view honest. We will help you pick per opening rather than selling one glass everywhere, because a south wall and a shaded north wall are not the same problem.

Installation by TruePane Windows & Doors in Miami

A window is only as good as its install, and with an HVHZ-rated product, the installation is not optional craft. It is part of the system. A unit that passes TAS 201 in a lab but gets set out of square in your wall loses the very performance you paid for. That is why our installation process starts before the window arrives.

We begin with a pre-install inspection of the rough opening: condition of the buck or masonry, existing water intrusion evidence, and how square the opening actually is. Most Miami openings are not square, especially in pre-1970 masonry construction. We account for that before the unit goes in, not after. Then we set the window level, plumb, and square, shimming to the structure, not to the trim. The frame is fastened per the manufacturer’s approved method for the substrate, whether that is concrete block, wood frame, or a combination. Around the perimeter, we apply AAMA 812 low-expansion foam sealant as the perimeter air and water seal, following AAMA 2400/2410 installation practice for fenestration assemblies.

After the frame is set and sealed, we re-check panel operation on both operable lites, verify the interlocks engage cleanly, and run a final water test on the install. In Miami-Dade, coastal exposure means wind-driven rain is a weekly event, not a storm-only concern. A correctly installed unit should shed water on a random Tuesday afternoon as confidently as it does during a named storm. We also flag permit requirements before work starts, because most of our Miami jobs are in jurisdictions that want the NOA or FL Product Approval submittal attached to the permit application. We provide that documentation with your quote, and we work with your permit expediter or handle the submittal ourselves if you prefer.

Frequently Asked Questions - 3-Panel Sliding (3-Lite Roller) Windows

Get a Quote - 3-Panel Sliding (3-Lite Roller) Windows in Miami

If you have a wide opening that needs impact-rated glass and you want the panels to glide like they were built for it, we are ready to measure and spec it. Call (561) 489-4036 to schedule a free on-site measurement and get a written, line-item quote with your NOA documentation included.

Written by the team at TruePane Windows & Doors, serving Miami, FL.
